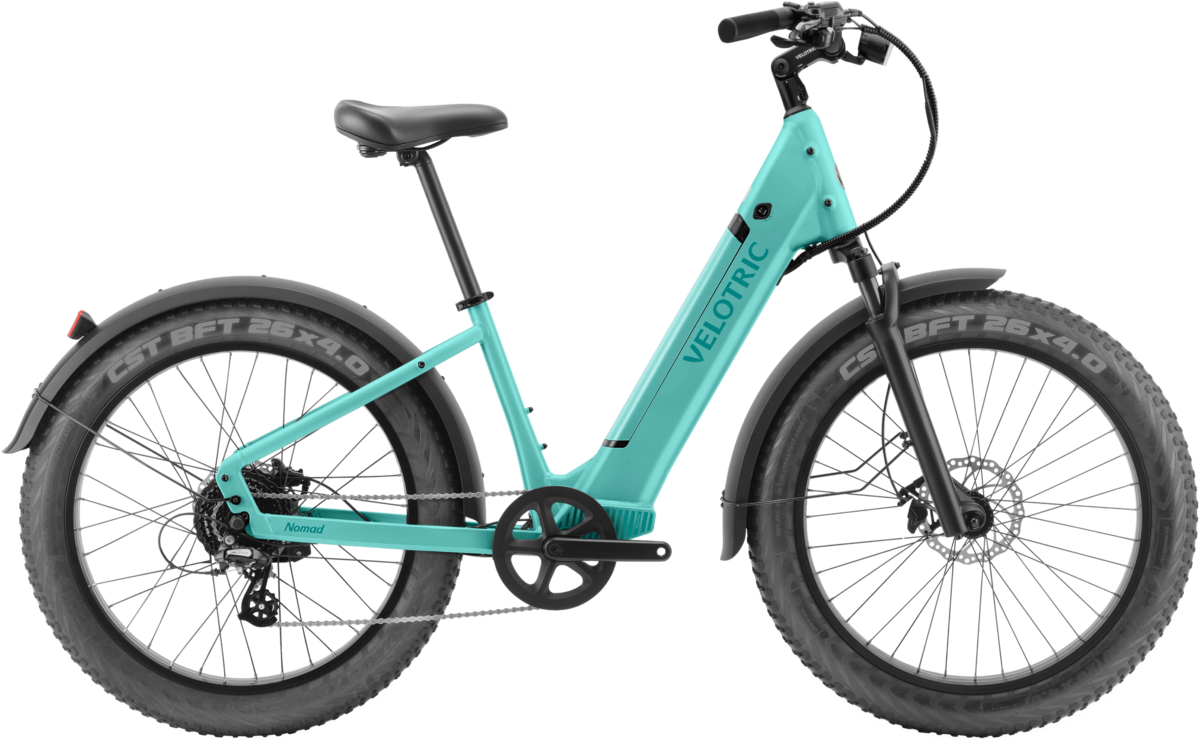

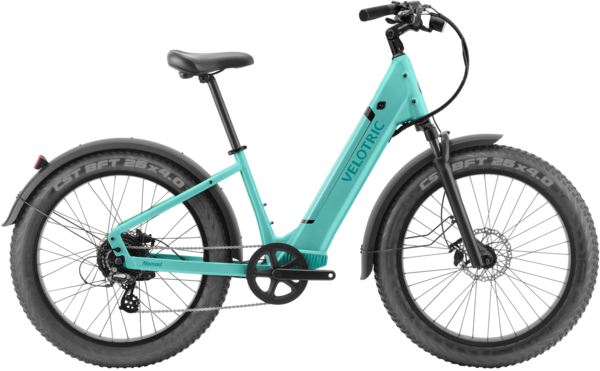

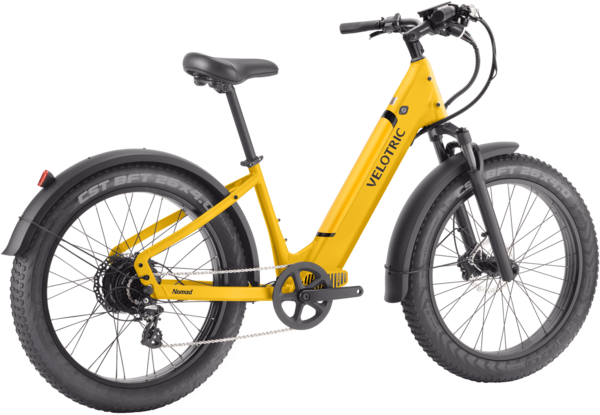

Velotric Nomad 1 Plus Step-Thru Ebike
This item is currently not available.
Details
Capacity, Power, and Comfort.
- 48V 14.4Ah, 750W Class 2 with Throttle Assist.
- 5-level pedal assist, Walk mode, USB charging.
- Frame with Fully-integrated Battery Design.
- Hydraulic Disc Brakes. Shimano 8-speed.
- UL 2271 Certified Battery included.
Nomad 1 Plus: What's in the "Plus"?
Adjustable Stem
- An adjustable stem was added to Nomad 1 Plus: enabling you to customize your riding position and ride more comfortably.
Brighter Front Light
- The Nomad 1 Plus front light now shines brighter at 60 Lux, enhancing safety with increased visibility.
Speed Range
- Its max speed adjustable range is now 12-28mph, so you can switch from Class 1 to 3 easily!
| Height | 5'1'' - 6'4'' | Seat Tube Length | 425mm | Head Tube Length | 205mm |
|---|---|---|---|---|---|
| Stack | 711mm | Reach | 409mm | Stand-Over Height | 430mm |
| Top-Tube Length (horizontal) | 630mm | Min Saddle Height | 817mm | Max Saddle Height | 1018mm |
| Bike Size | Step-Thru/High-Step |
|---|---|
| User Height Range | Step-Thru: 5'1'' - 6'4'' / High-Step: 5'6'' - 6'9''" |
Specs
| Frame | Triple-Butted Aluminum Alloy |
|---|---|
| Fork | Hydraulic suspension with 80mm travel, with Lock-out |
| Rims | Aluminum alloy |
| Tires | 26x4.0”, puncture-resistant tire |
| Crankset | Aluminum alloy, 170mm |
| Chainrings | 46T |
| Shifters | Shimano 8-speed |
| Rear Derailleur | Shimano 8-speed |
| Cassette/Freewheel | 8-speed |
| Chain | KMC 8-speed |
| Brakes | Hydraulic disc brakes |
| Rotors | 180mm front and rear |
| Brake Levers | Aluminum Alloy, with power cutoff |
| Handlebars | Aluminum alloy, F31.8mm, 700mm |
| Tape/Grips | Durable ergonomic Grips, lockable |
| Stem | Adjustable, Aluminum Alloy, F31.8mm, 90mm |
| Seatpost | Aluminum Alloy, F30.9mm, 350mm |
| Saddle | Velotric urban comfort ergonomic seat |
| Pedals | Plastic |
| Accessories & Extras | Front Light: High output integrated LED, 60LUX, adjustable angle /Rear Light Braking Indicator, Fenders: Front and rear full coverage, Kickstand: Aluminum Alloy, included, rear mount |
| Motor | 48V, 750W, max torque 75Nm |
| Battery | 48V, 691Wh, UL 2271 Recognized |
| Controller/Display | 3.5” Backlit LCD display with speed, trip, battery, assist level and more |
| Charger | 48V, 3.0A Fast Charger |
* Subject to change without notice.
